The Ultimate Engineering Guide to Closed Cell PVC Foam Rolls
In the intricate gears of modern industrial manufacturing, every minor advancement in materials science reshapes the performance boundaries of end products. For R&D engineers and engineering directors at major manufacturing firms, finding a substrate that maintains exceptional shock absorption, sealing, and acoustic insulation in extreme environments is a challenging engineering task.
Throughout this sourcing and rigorous testing process, Closed cell PVC foam has emerged as the premier choice for Tier 1 suppliers and high-end equipment manufacturers. Its unique microcellular structure and high processing tolerance set it apart. However, the foam material market is mixed, with exaggerated parameters and rapid performance degradation being common issues.
This comprehensive guide is designed to thoroughly analyze the core engineering principles of the pvc foam roll. We will reveal the actual performance of different thicknesses across industrial scenarios and provide you with a highly valuable technical evaluation standard for choosing a reliable custom foam substrate manufacturer.
1. Deep Dive: What is Flexible PVC Foam?
Before exploring specific industrial applications, we must understand the microscopic nature of this material and clarify commonly confused industry terminology. Precise communication of parameter requirements is essential for successful technical alignment.
1.1 Microcellular Structure & Core Principles
When junior engineers search for "what is pvc foam," they often find ambiguous answers. In reality, industrial-grade Flexible PVC Foam is created through an advanced dynamic polymer foaming process. PVC resin is cross-linked with specific eco-friendly plasticizers and foaming agents under precisely controlled high temperatures. This forms countless independent, non-interconnected microscopic bubbles (Microcellular Structure).
This pure "closed-cell" characteristic means gases or liquids can not penetrate the material. It delivers:
Extremely low water absorption
Superior resistance to compression set
Outstanding thermal insulation and flame retardancy
Compared to traditional open-cell sponges (like standard PU), it is not just a physical buffer; it is a highly reliable industrial isolation barrier against moisture, dust, and chemical solvents.
1.2 Clarifying Terms: Vinyl Sponge Roll vs. Expanded Vinyl Fabric
In cross-enterprise communication, engineering term accuracy dictates the success of prototyping and mass production. Many buyers searching for industrial dampening substrates mistakenly use the term Expanded Vinyl Fabric.
In professional materials science, "Expanded Vinyl Fabric" strongly implies a "foamed artificial leather" with a fabric backing (such as knit or woven cloth), essentially a pvc sponge leather. It is used for surface coverings like furniture upholstery or car seats, focusing on tactile feel and wear resistance rather than internal mechanical support.
If you are sourcing pure substrates for precision die-cutting, adhesive backing, or waterproof sealing, the accurate engineering terms are Vinyl Sponge Roll or expanded foam pvc rolls. These pure foam materials have no fabric backing, relying entirely on their microcellular structure. Clarifying this prevents purchasing the wrong composite material and speeds up your R&D progress.
1.3 What is the Difference Between Expanded PVC and Cellular PVC?
While both share a Polyvinyl Chloride base, their physical forms are vastly different:
Expanded PVC: A rigid, lightweight board (like Sintra or Forex) used for signage and cabinets. It has no deformation recovery capabilities.
Cellular PVC (Flexible PVC Foam): A highly flexible polymer elastomer. It can be tightly wound into pvc foam rolls, deeply compressed, and will recover its shape. If you need premium foam materials for gaskets, you require the highly elastic Cellular PVC.
2. Overcoming Bottlenecks with High-Performance Foam Gasket Material
2.1 The Limitations of Traditional Materials
Historically, manufacturers used EVA, EPDM, or open-cell PU for sealing. However, under extreme conditions—such as engine compartment heat, marine salt spray, or heavy machinery vibration—these fail:
EVA: Prone to permanent compression set (collapses and cannot recover).
Open-cell PU: Absorbs water and humidity, leading to short circuits in expensive electronics or irreversible rust in metal structures.
2.2 The Edge of Waterproof Foam Gaskets in NVH
This is where Closed cell PVC foam excels. Because of its 100% independent cell structure, it is a top-tier waterproof foam gasket material. Laboratory data shows that when compressed by 30%, it forms a perfect seal against water, dust, and wind.
Simultaneously, the trapped air within the microcells creates an exceptional acoustic dampening layer. In automotive and precision instrument manufacturing, applying a thin layer of microcellular PVC foam between critical components perfectly resolves NVH (Noise, Vibration, and Harshness) issues.
2.3 Challenges in Single Sided Foam Tape Processing
For downstream precision die-cutters, flawless surface flatness is the lifeline of yield rates. When manufacturing single sided foam tape or adhesive foam tape single sided, any microscopic surface bubbles or wide thickness tolerances will cause the release liner and adhesive to apply unevenly, leading to catastrophic delamination. Sourcing an industrial-grade substrate that offers ultimate flatness and high internal tear strength without powdering is a core priority for QA managers.
3. Thickness Matrix: Industrial Applications of PVC Foam Rolls
Material thickness reshapes the application scenario. Below is a breakdown of how different thicknesses perform across our industrial sealing solutions:

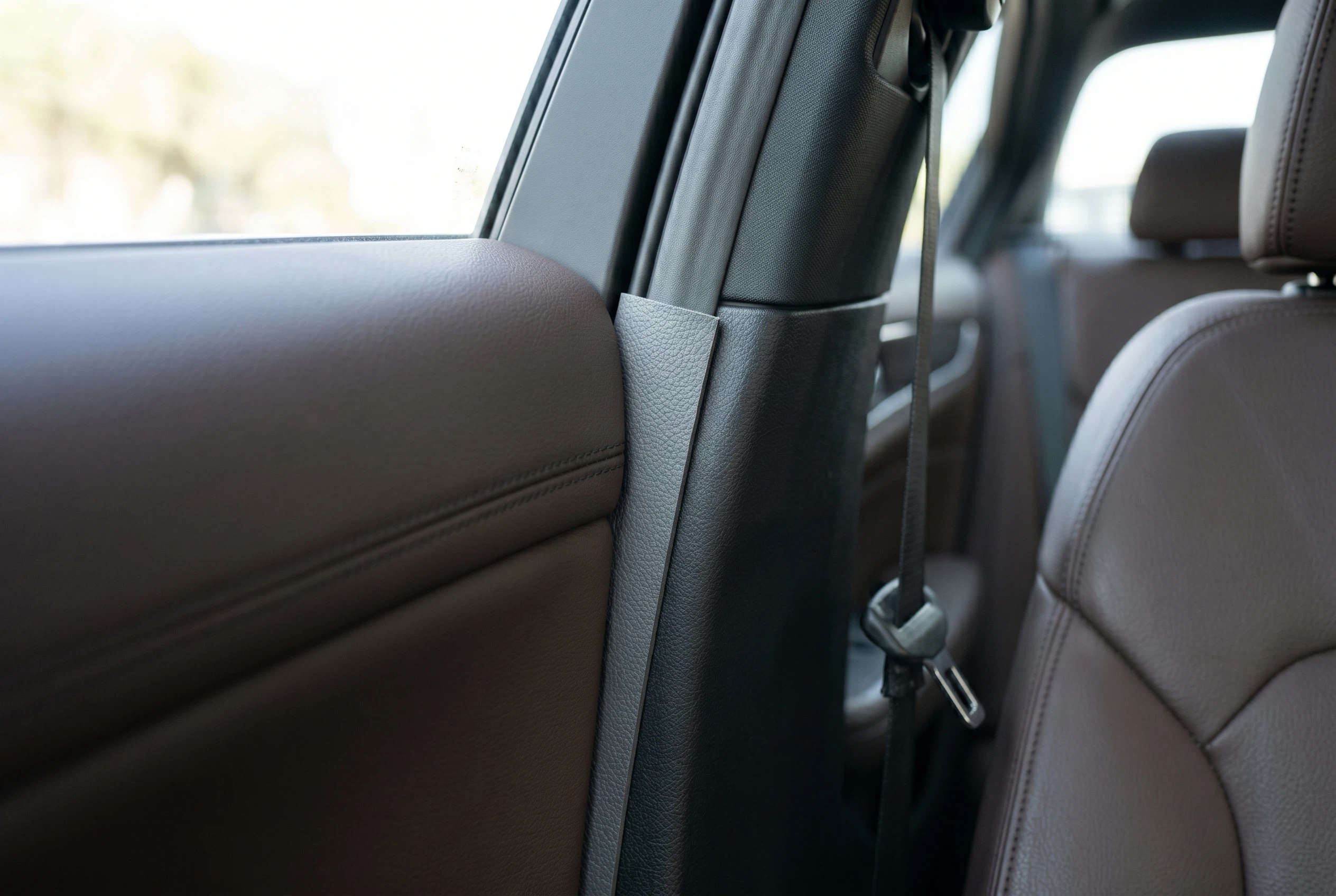

For automotive suppliers strictly adhering to IATF 16949 standards, 0.5mm to 3mm ultra-thin foam is a premium automotive foam gasket material. Stamped into complex geometries, it prevents BSR (Buzz, Squeak, and Rattle) noises inside dashboards and HVAC vents. Its VOC-compliant formula ensures cabin air quality remains safe under extreme temperature fluctuations.
In electronics, these single-coated foam tapes seal battery modules and act as glazing tapes for architectural curtain walls, ensuring uniform structural adhesive thickness..
3.2 4mm – 8mm: Marine & Weatherstrip Tape

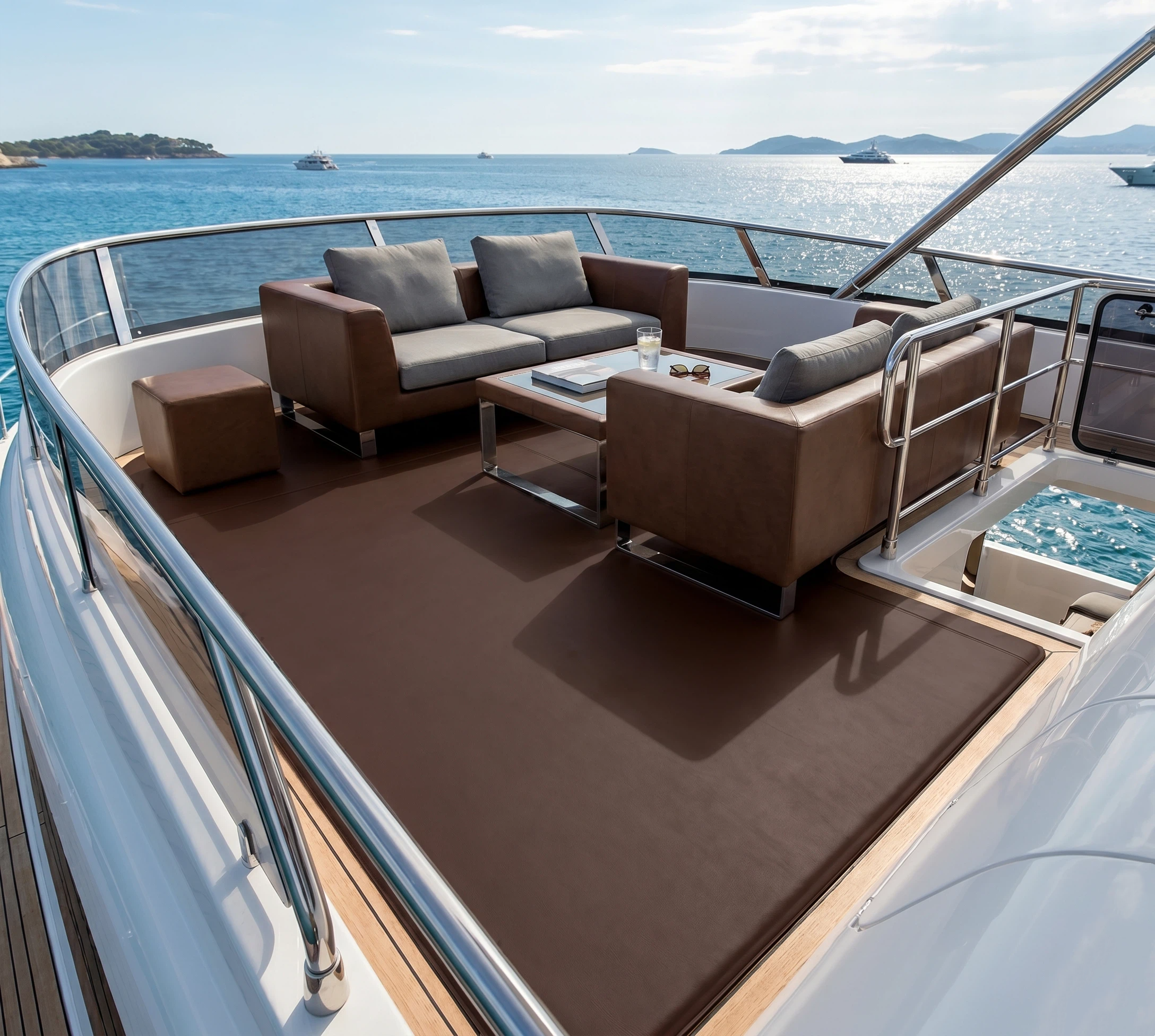

In this range, the material thrives in harsh environments. It serves as heavy-duty pvc closed cell vinyl foam weatherstrip tape for machinery doors and acts as a premium substrate for luxury yacht decking due to its UV and salt spray resistance.
3.3 9mm – 13mm: Heavy Duty Anti-Fatigue Floor Mat Roll

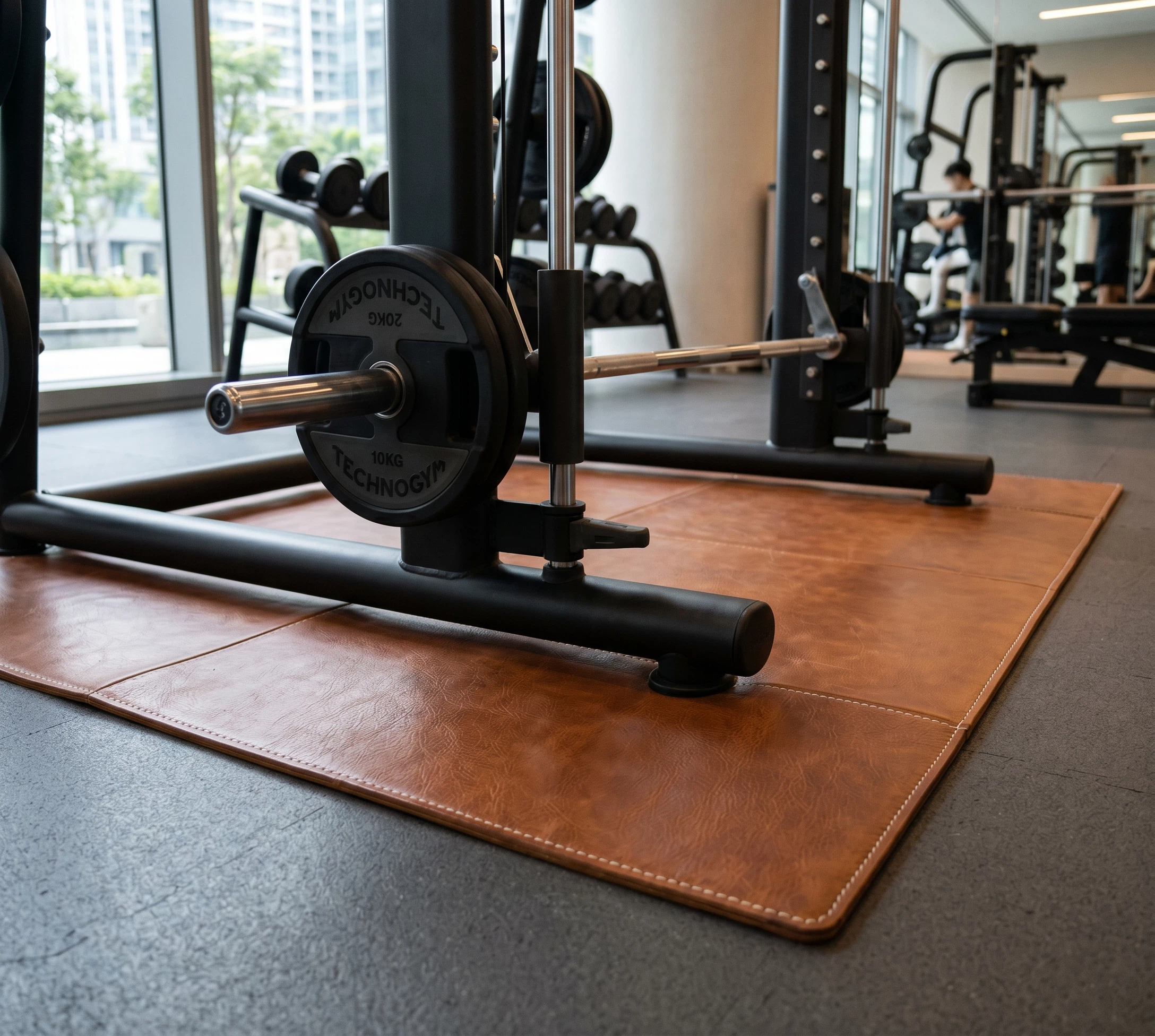

Crossing the 9mm threshold, we enter the realm of maximum impact resistance. At its peak thickness of 13mm, this Heavy Duty Expanded Vinyl becomes the ultimate anti fatigue floor mat roll. It completely isolates workers from hard concrete floors, providing years of ergonomic support. Being 100% waterproof, it withstands high-pressure industrial washing effortlessly.
4. How Engineers Evaluate Premium PVC Foam Suppliers
When engineering teams conduct NPI (New Product Introduction) sourcing, they look beyond A4 samples. They evaluate underlying capacity and quality control.
2-Meter Ultra-Wide Capacity: Standard foam rolls are limited to 1.2m - 1.5m. A supplier capable of 2-meter ultra-wide continuous production proves superior machinery tension control. For die-cutters, this reduces raw material waste by 15%-30% and eliminates secondary splicing costs.
REACH & RoHS Compliance: Top enterprises have zero tolerance for chemical non-compliance. Providing consistent REACH/RoHS test reports and maintaining ISO/IATF 16949 systems guarantees supply chain security and zero toxicity risks.
Processing Tolerance: Premium substrates must be RF Weldable PVC Foam Rolls for seamless, high-strength splicing. They must also possess excellent surface dyne levels to bond flawlessly with acrylic or rubber adhesives, forming high-peel industrial single sided foam adhesive tape.
5. Caiwing: Your Reliable Expert in PVC Foam Rolls
As a physical manufacturer integrating polymer R&D and deep application engineering, Caiwing is not just a resource consolidator. We have built strict technical moats in the industrial Vinyl Sponge Roll sector through years of formula iteration.
5.1 Breaking Limits: Precision from 0.5mm to 13mm
Caiwing mastersadvanced dynamic microcellular foaming technology. We provide a full matrix of thicknesses, from the ultra-thin 0.5mm precision die-cutting layer to the 13mm heavy-duty cushioning layer. We understand that a 13mm high-foaming thickness is a significant technical threshold requiring precise balance of foaming rates and internal pressure.
Whether you need a thin foam tape single sided or a heavy-duty mat, we deliver stable, continuous mass production at an industry-rare 2-meter ultra-wide standard, significantly lowering your unit manufacturing costs.
5.2 Deep OEM/ODM Customization
Standard products often fail in extreme machinery conditions. Caiwing strongly supports highly technical, unconventional high-foaming customization. Our polymer R&D team can adjust cross-linker ratios to reshape the dynamic response curve—creating "fast-rebound" foams for heavy impacts or "slow-rebound" foams for ergonomic support. We also provide custom flame retardant standards (like FMVSS 302) and bionic anti-slip embossing directly on the production line.
5.3 Consultative Engineering Support
Purchasing precision materials isn't just about reading a chart. Caiwing provides deep consultative technical support. Whether you face NVH sealing degradation under high heat, die-cutting edge debris, or adhesive delamination issues, our engineers work from the foundational formula. We conduct multiple rounds of sampling with your R&D team to deliver a flawless manufacturing solution.
6. Upgrade Your Sealing Solutions Today
In modern manufacturing, selecting the right pvc foam roll substrate is a core strategy to enhance your equipment's market competitiveness. With our extreme thickness span (0.5mm to 13mm), massive cost-saving 2-meter wide capacity, strict REACH compliance, and deep OEM customization,Caiwingis ready to be your most reliable materials science partner.
In materials engineering, physical testing is the only way to verify tactile feel, rebound speed, and adhesive compatibility. If you are sourcing premium Closed cell PVC foam or single sided foam tape substrates for your next R&D project, contact our engineering team now. Visit the Caiwing official website to leave your specific parameter requirements, and let us co-develop the next quality benchmark in industrial manufacturing!
7. Frequently Asked Questions about Expanded Foam PVC
7.1 Is PVC sponge waterproof?
AWhile traditional "PVC sponge" is often discussed in the market, there is a crucial distinction to make. Standard open-cell sponges can absorb water if the surface layer is breached. However, our premium Closed-cell Foamed Synthetic Leather is 100% inherently waterproof. The advanced closed-cell structure completely blocks moisture and liquid penetration from the inside out, making it the ultimate superior choice for marine decking, medical rehab mats, and spill-prone commercial environments.
7.2 What is the difference between PVC and foam PVC?
AThe primary difference lies in the internal structure and physical properties. Standard flexible PVC is typically a solid, dense layer. In contrast, foam PVC (specifically our Solid-skin Foamed Vinyl) undergoes a specialized high-foaming process where millions of microscopic air pockets are uniformly created within the material's core. This advanced process results in a material that is significantly lighter, incredibly softer, and possesses excellent compression recovery (rebound)—making it far superior to standard PVC for ergonomic support, anti-fatigue matting, and acoustic insulation.
7.3 How thick is foam PVC?
AThe thickness of flexible foam PVC depends heavily on the manufacturer's production capabilities. As a leading factory with industrial-scale customization, we offer an extreme dimensional range. Our premium pvc foam rolls and Heavy Duty Expanded Vinyl are meticulously engineered from ultra-thin precision layers starting at 0.5mm (ideal for electronic gaskets and automotive linings) all the way up to an industry-leading 13mm (designed for extreme impact absorption in gym underlays and livestock matting)
7.4 What is PVC foam?
AIn the context of flexible roll materials, PVC foam—often referred to by professionals as Expanded Vinyl Fabric—is a high-performance composite material. It is manufactured by utilizing advanced foaming technology to expand PVC resin, creating a dense, micro-cellular core. This structural transformation yields a material that offers exceptional shock absorption, ergonomic rebound, and thermal insulation, serving as the perfect substrate for automotive NVH solutions, premium underlayments, and heavy-duty matting.
