3157#

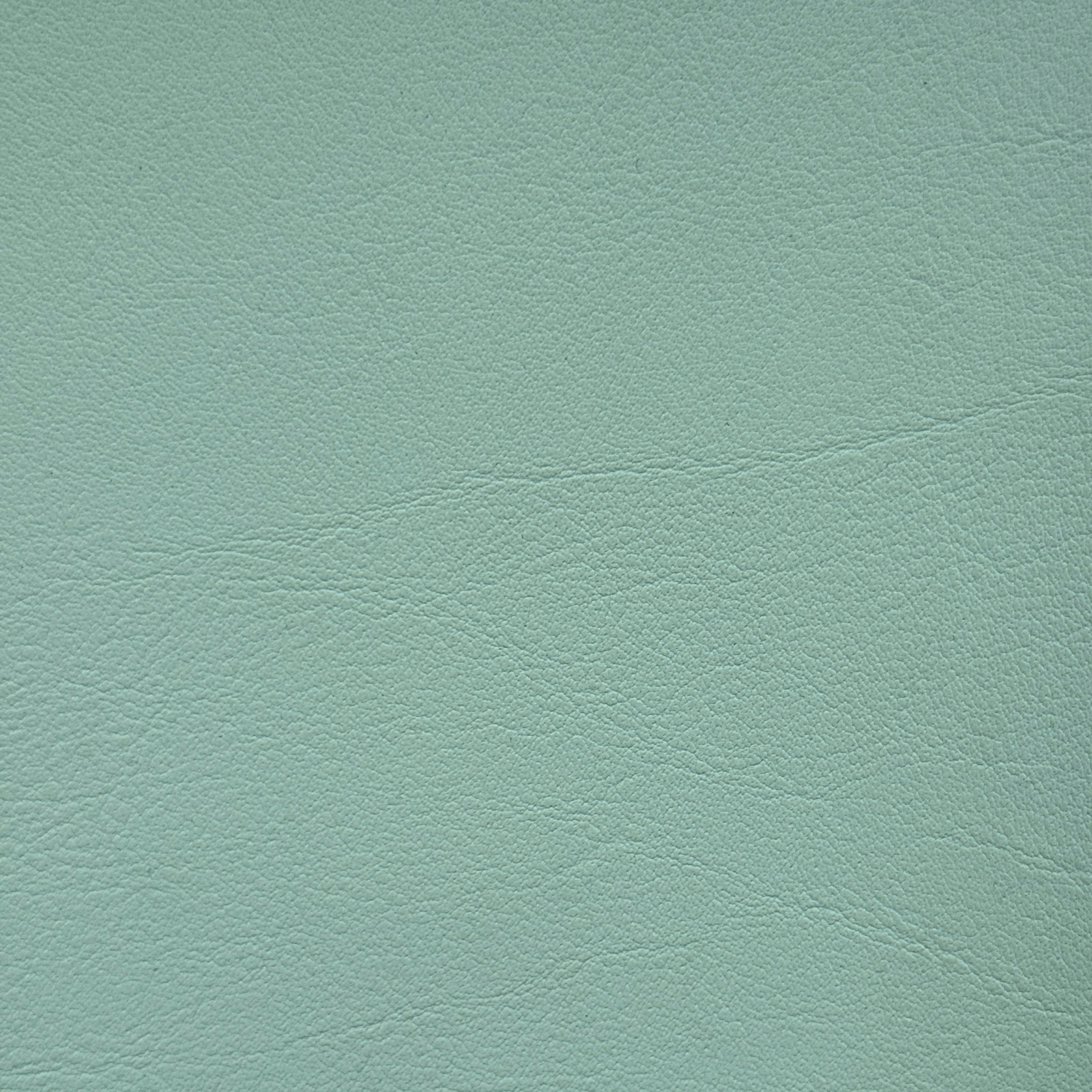

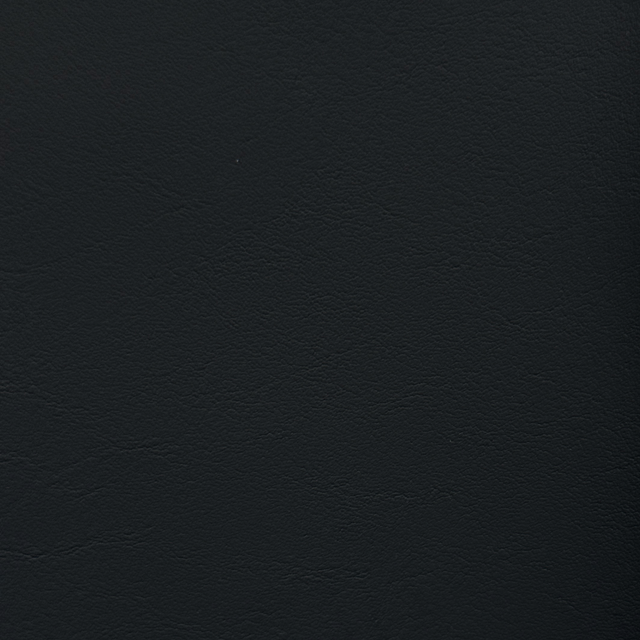

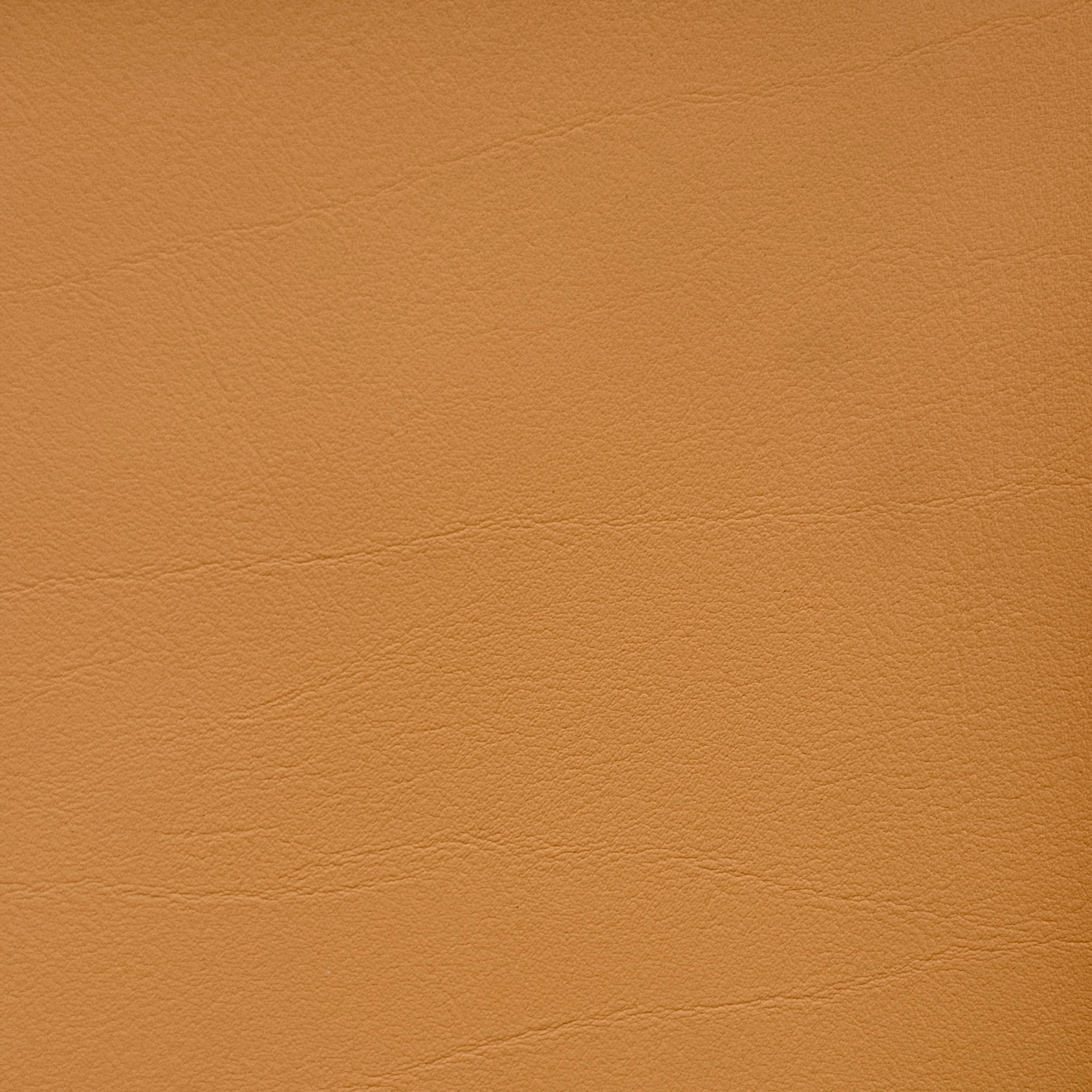

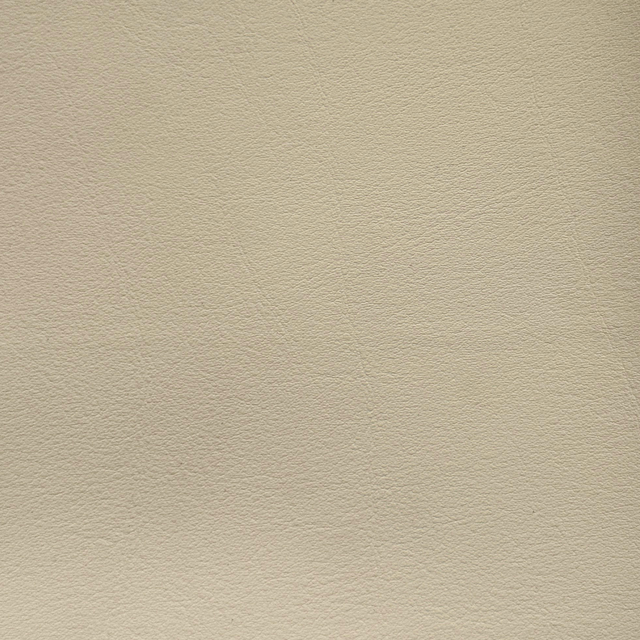

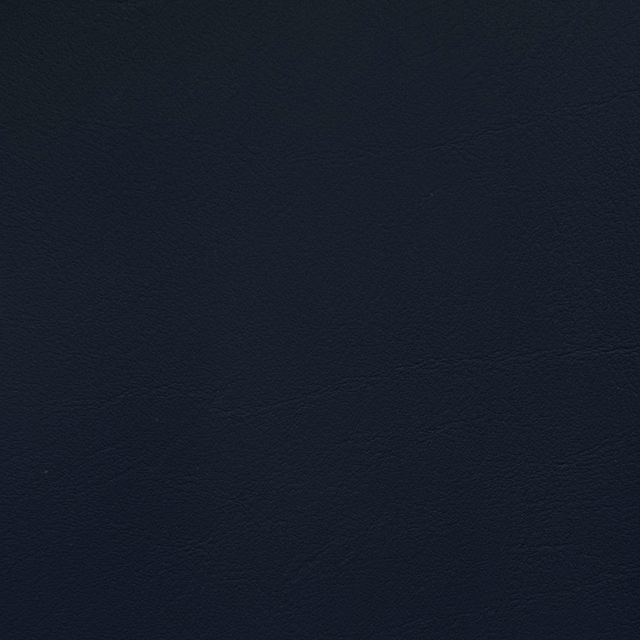

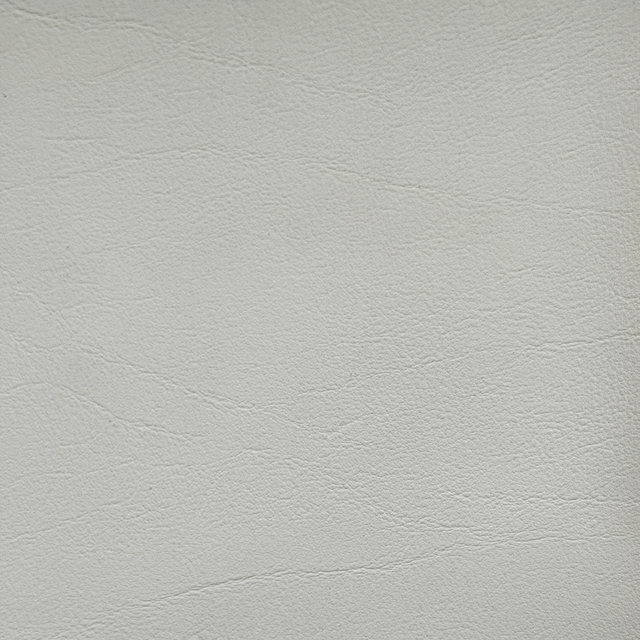

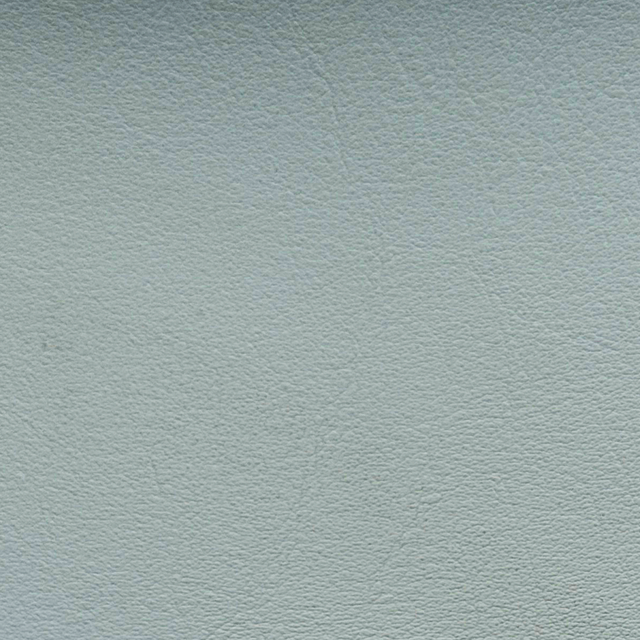

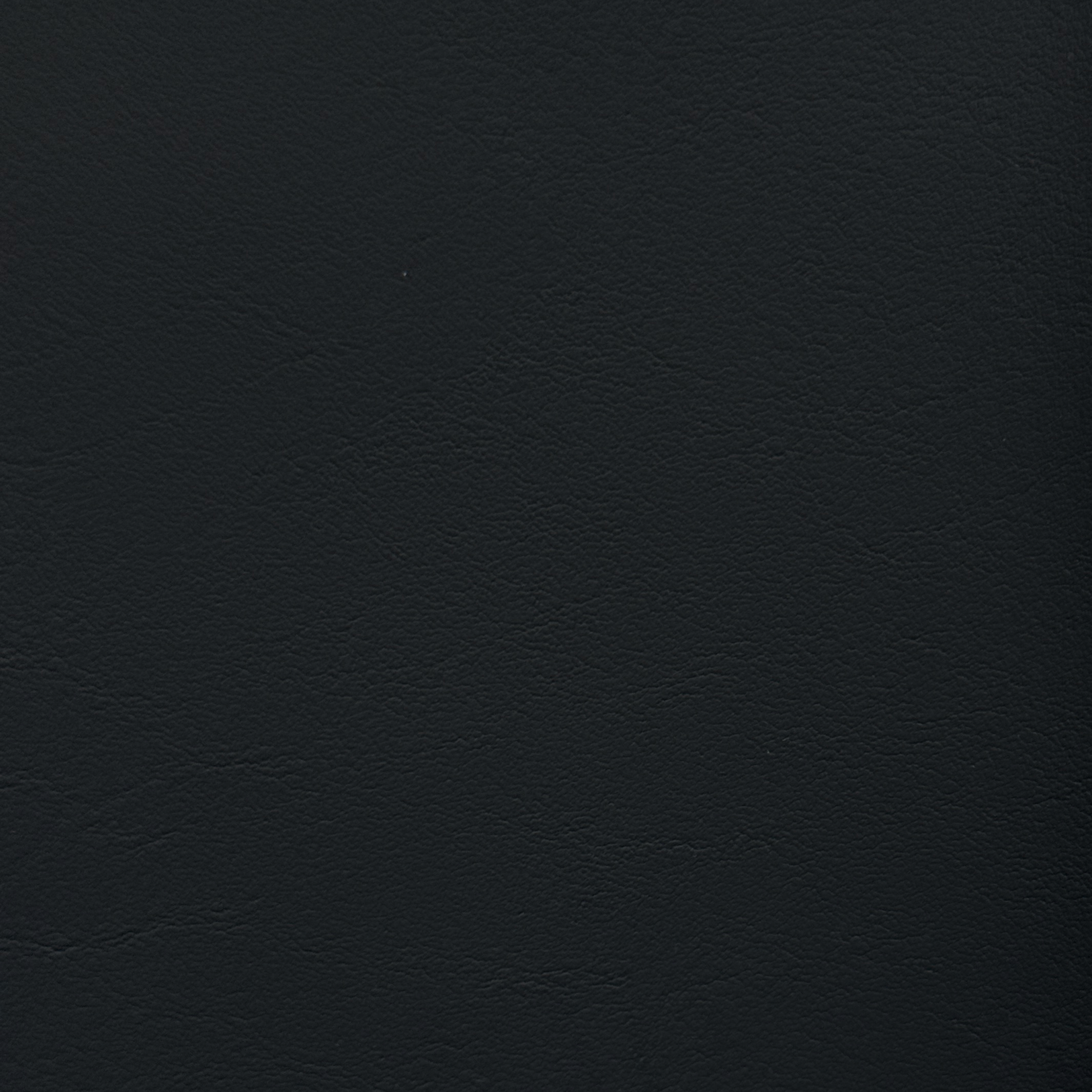

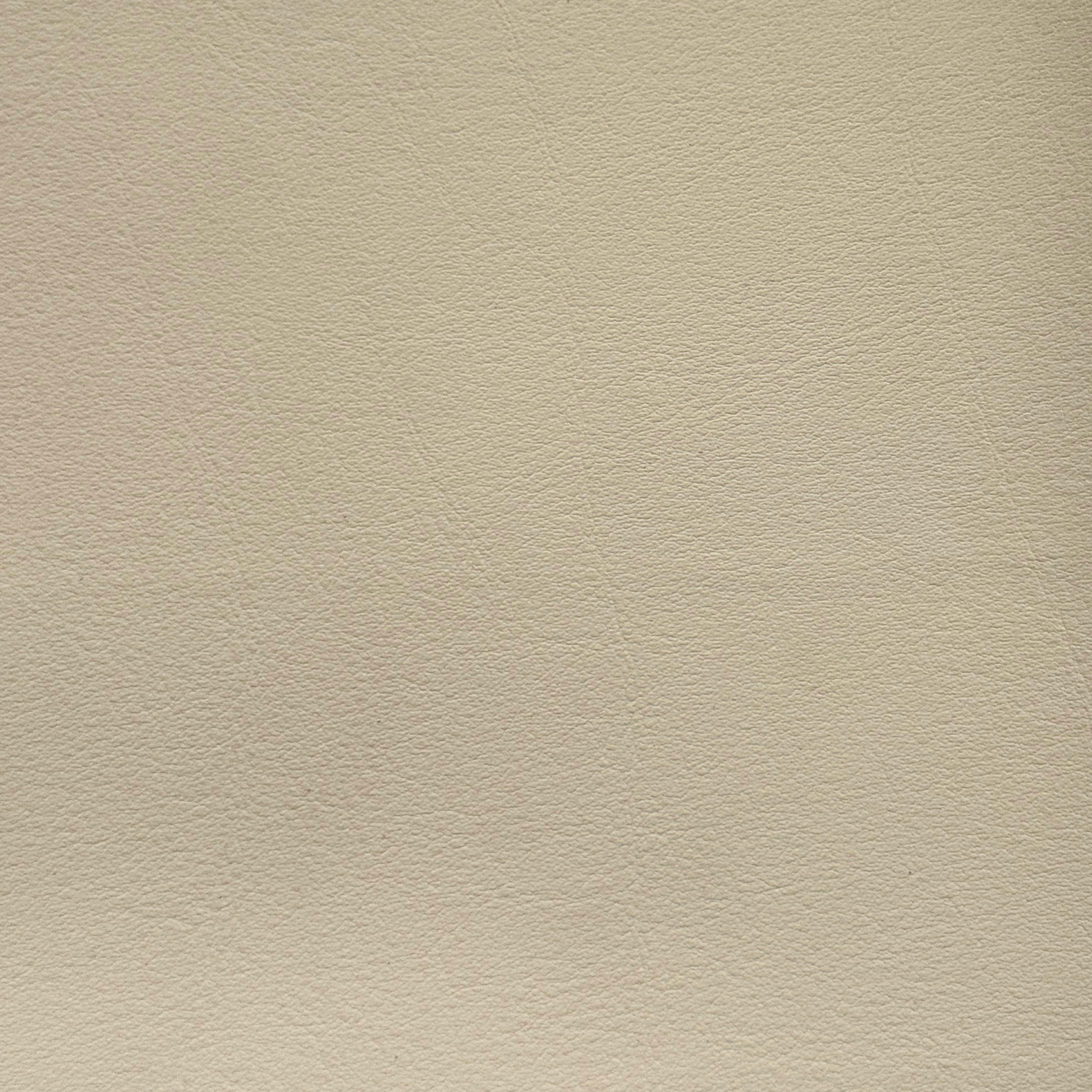

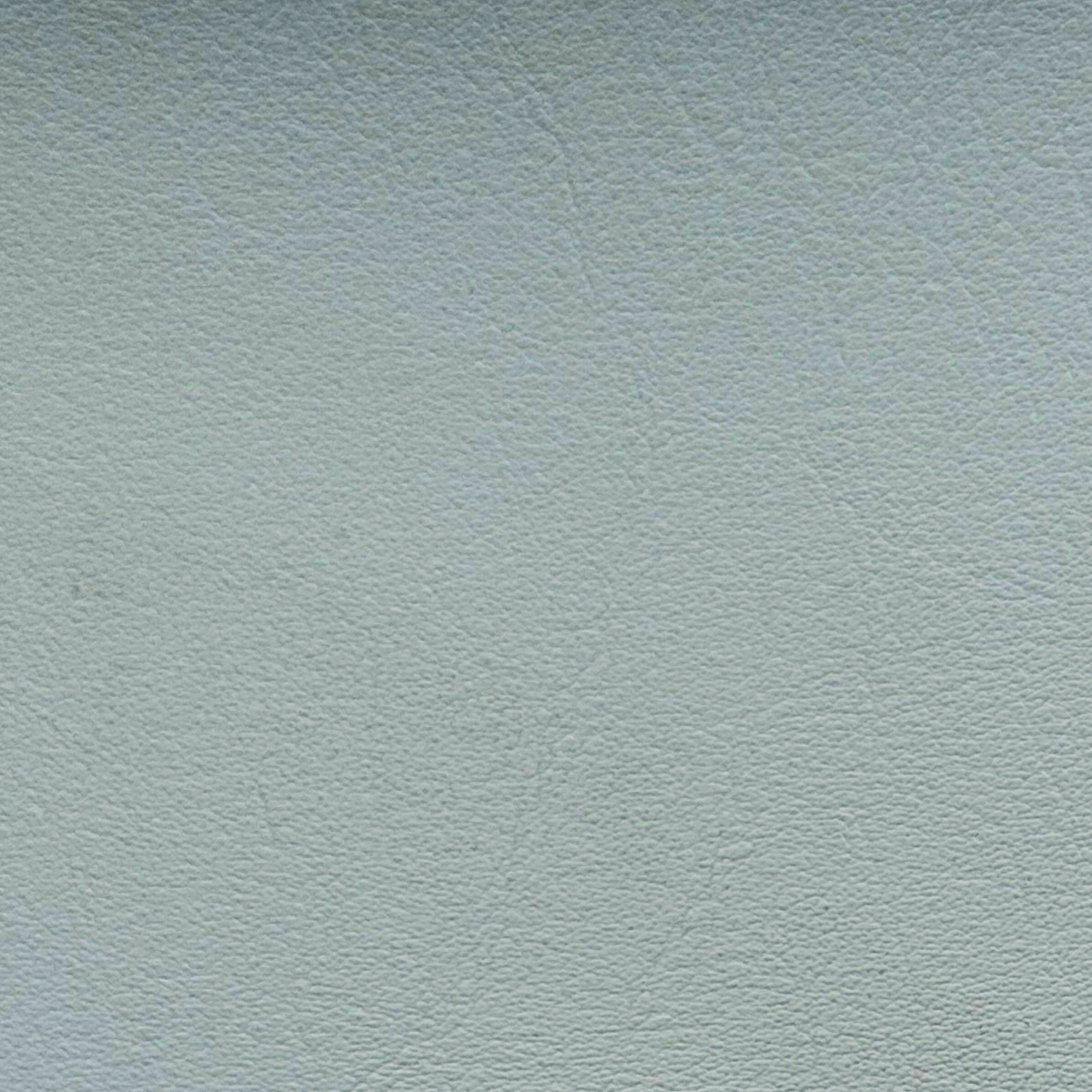

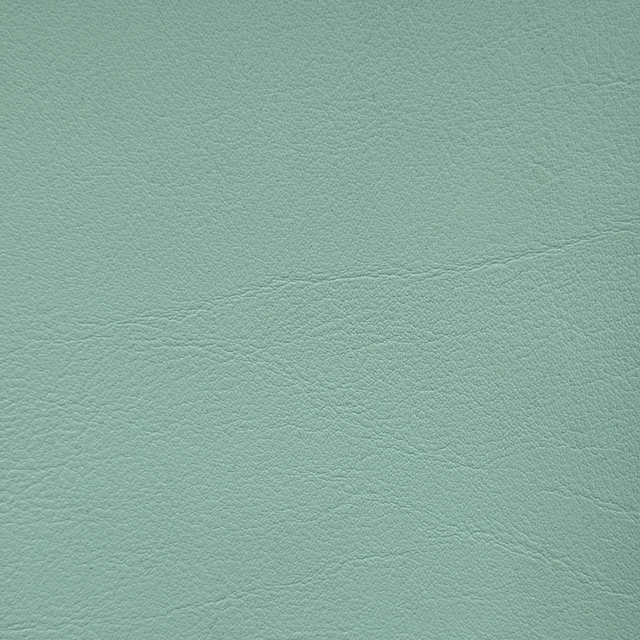

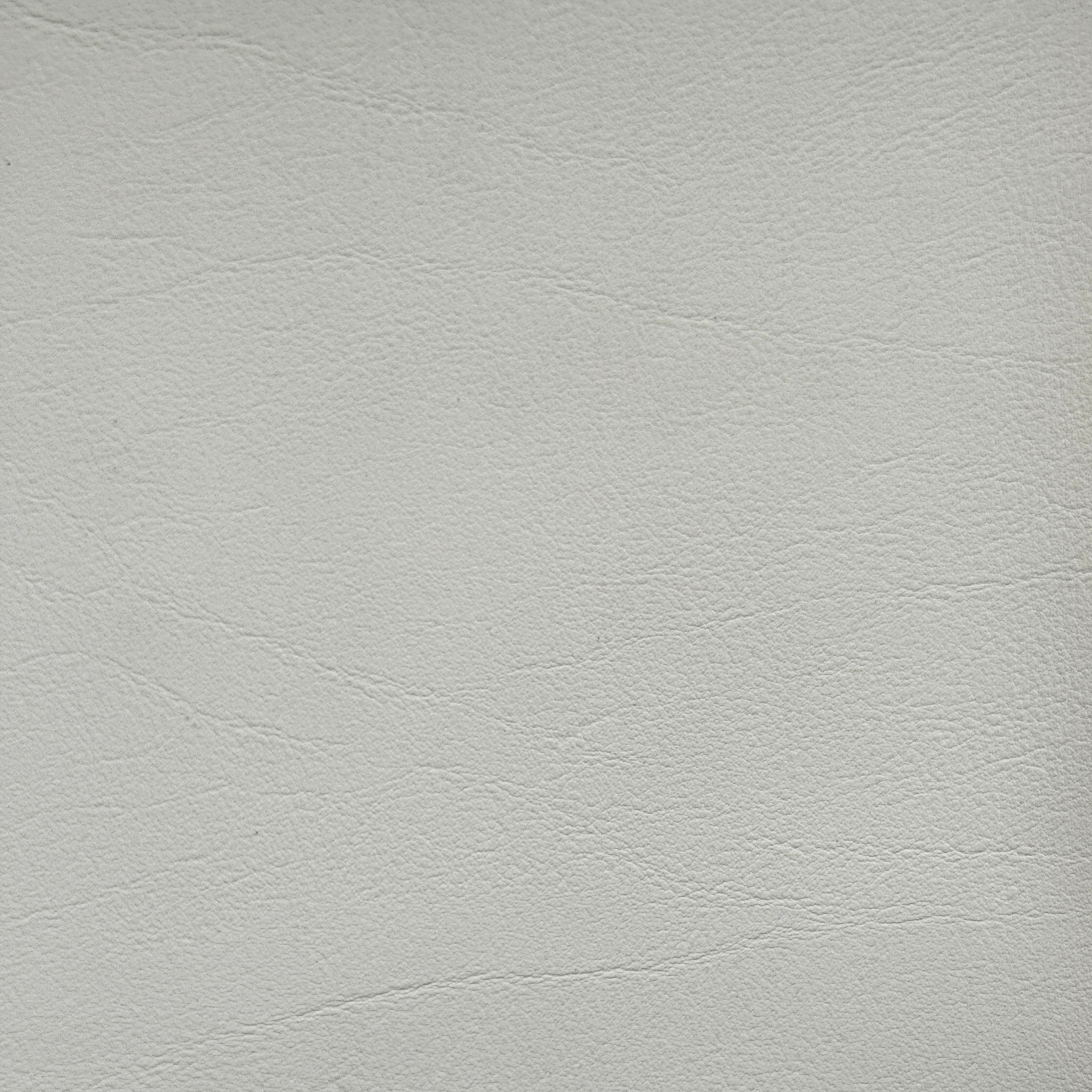

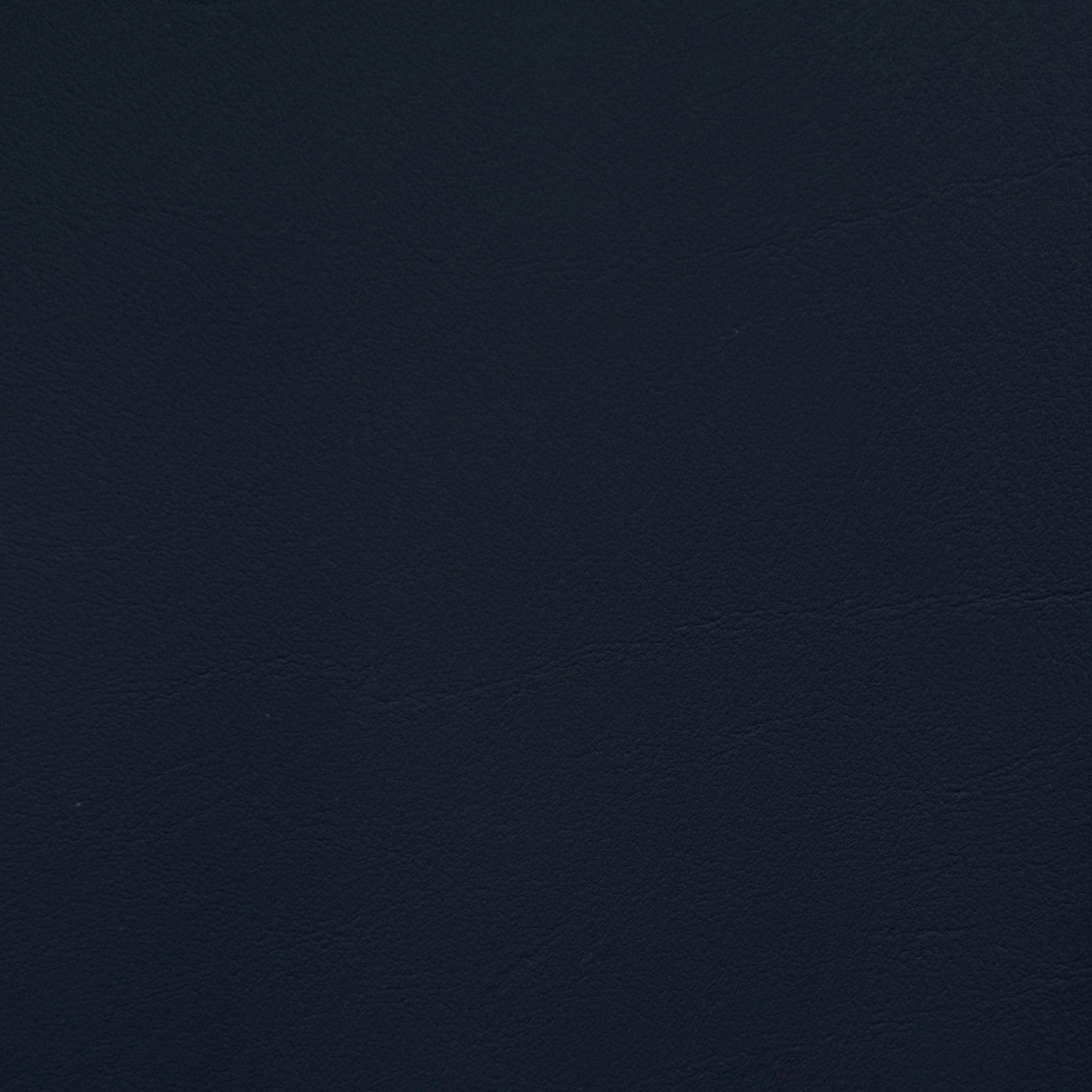

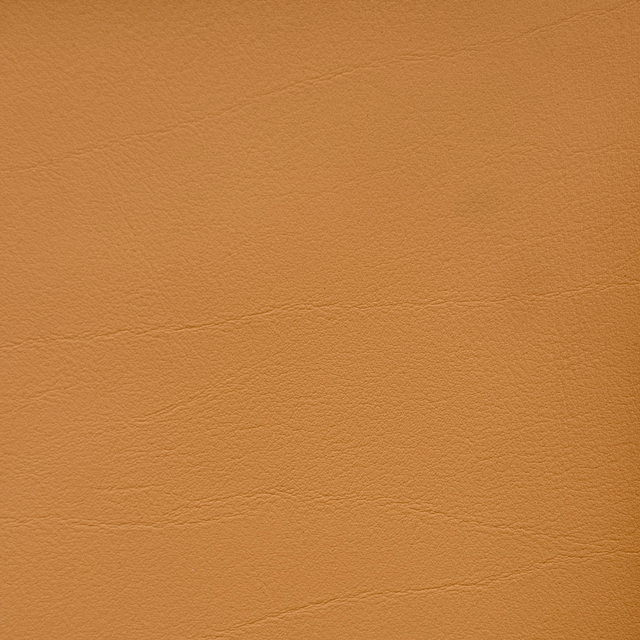

Vacuum Forming Vinyl

Browse By Category

Specification

Vacuum Forming Vinyl it is a product that can be vacuum technology, suitable for various furniture.
chair
  BASIC INFO.
  PROJECT UNIT STANDARD RESULT
  Thickness mm   1.1±0.05
  Width cm   ≥138
  Weight gram/m2 DIN 2286 750±20
  Composition 2% PU, 68% PVC, 30% PES
  PHYSICAL PROPERTY
  Abrasion Resistance cycle Mardindale ≥150,000
  Tear Strength N ISO 4674 Warp 30; Weft 35
  Tensile Strength N ISO 1421 Warp 450 Weft 400
  Elongation Rate % ISO 4674 Warp 250; Weft 400
  Color Fastness to Rubbing Level ISO 105 X12 Wet ≥4.5 ; Dry ≥5
  Color Fastness to Perspiration Level ISO105 E04 ≥4.5
  Flex Resistance at -20℃ times ISO 5402 >50,000
  Hydrolysis Resistance Week ISO 1419 Method C 5
  FUNCTIONAL PERFORMANCE
  ESD Rate Q   BLACK 105; COLOR 105~107
  Low temperature treatment PASS GB/T 20991 -20℃
  Color Fastness to Perspiration Level ISO 105 E04 Acid 4.5 ; Alkali 4.5
  Color Fastness to Alcohol Level ISO 105 E04 99% 20 cycles level 4-4.5
75% 20 cycles level4.5
  Color Fastness to Rubbing Level ISO 105 B02 Wet ≥4.5 ; Dry ≥5
  Anti-bacteria Level ISO 22196 ≥4.5
  Flame retardancy CA117
  ENVIRONMENTAL PROTECTION
  REACH(SVHC) CA65 REGULATION
  ROHS PAHS
  LOW VOCs EN71-3

CARE + MAINTENANCE GUIDE

Do not store in long-term wet places. This will accelerate the aging of the leather.
It can not be placed in direct sunlight for a long time.
If any stain is found, please clean it in time. The longer the time, the more difficult it is to clean the stain.
Do not soak the leather.

Application

Vacuum forming vinyl it is suitable for various industries, including furniture, automotive, healthcare, electronics.
Outdoor-&-Marine
Outdoor & Marine
Child-Supplies
Child Supplies
packing
Packing
Commercial
Commercial
Residential
Residential
mats
Mats
Transportation
Transportation
Healthcare
Healthcare
  • color-fastness

    Color Fastness
  • high-strength-physical-property

    High Strength Physical Property
  • eco-friendly-

    Eco-friendly
  • weathering-resistance

    Weathering Resistance
  • flame-resistance

    Flame Resistance
  • antibacterial-mouldproof

    Antibacterial Mouldproof
  • QUV-test

    QUV test

Vacuum Forming Vinyl Certificate

Laboratory

Caiwing has a complete team and management system in quality control. All testing operations are carried out in strict accordance with ISO, ASTM, AATCC, SATRA, DIN, GB. In depth cooperation with major testing institutions (SGS, Intertek, etc.) and industry standard setting institutions, real-time learning and updating of self technology, to provide customers with the latest testing standards.
Laboratory1
Laboratory2
Laboratory3
Laboratory4
Laboratory5
Laboratory6

Production Workshop

Caiwing selects the global high-quality supply system to provide diversified products and services for customers in needs.
It has a complete testing center and application analysis team, which can develop and provide solutions for stamoid marine vinyl fabric according to the needs of different scenarios.
Production-workshop-1
Production-workshop-2
Production-workshop-3

Shipping

GYM

CAIWING has a gym , which enables employees to have a rich and colorful spare time life after work. This can also stimulate employees' creativity and happiness and form a strong intemal cohesion.

How To Package

The thick paper tube avoid damage the leather in long-term transportation and reduce the tail wrinkles of the leather.
Generally, the diameter is 4cm, and more diameters can be selected, such as 5cm, 6cm, etc.
Special Packing Can Be Negotiated

Inner-Packing



Inner Packing


Plastic film is used for inner packing to keep leather clean.


Outer-packaging



Outer Packaging


In order to better protect the leather, the outer packaging uses woven bags.


Shipping-mark



Shipping Mark


Each batch of products will paste the shipping mark according to the information provided by customers.

How To Clean

CARE + MAINTENANCE GUIDE


Do not store in long-term wet places. This will accelerate the aging of the leather.
It can not be placed in direct sunlight for a long time.
If any stain is found, please clean it in time. The longer the time, the more difficult it is to clean the stain.
Do not soak the leather.

STAIN AND DISINFECTIENT RECOMMENDATIONS


Recommended Cleaning Solution: Mixture of Tide® or Oxiclean®
and warm water (1 teaspoon of soap for every 16 ounces water)

  • *For general spills, such as water, coffee, wine, sauce,milk etc.:

    Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.
    If the spill has evolved into a stain, a mixture of a mild soap, and
    water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in
    a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.


  • *For tougher, non-liquid spills, such as mustard, mayonnaise, sunscreen, etc.

    Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.
    If the spill has evolved into a stain, a mixture of a mild soap, and
    water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in
    a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.


  • *For Healthcare stains, such as Blood, Urine, Disinfectant, etc.:

    Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.
    If the spill has evolved into a stain, a mixture of a mild soap, and
    water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in
    a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.


  • *STAIN AND DISINFECTIENT RECOMMENDATIONS CONTINUED

    Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.
    If the spill has evolved into a stain, a mixture of a mild soap, and
    water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in
    a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.
