3155# Automotive Grade Vinyl

PVC Leather

Browse By Category

Specification

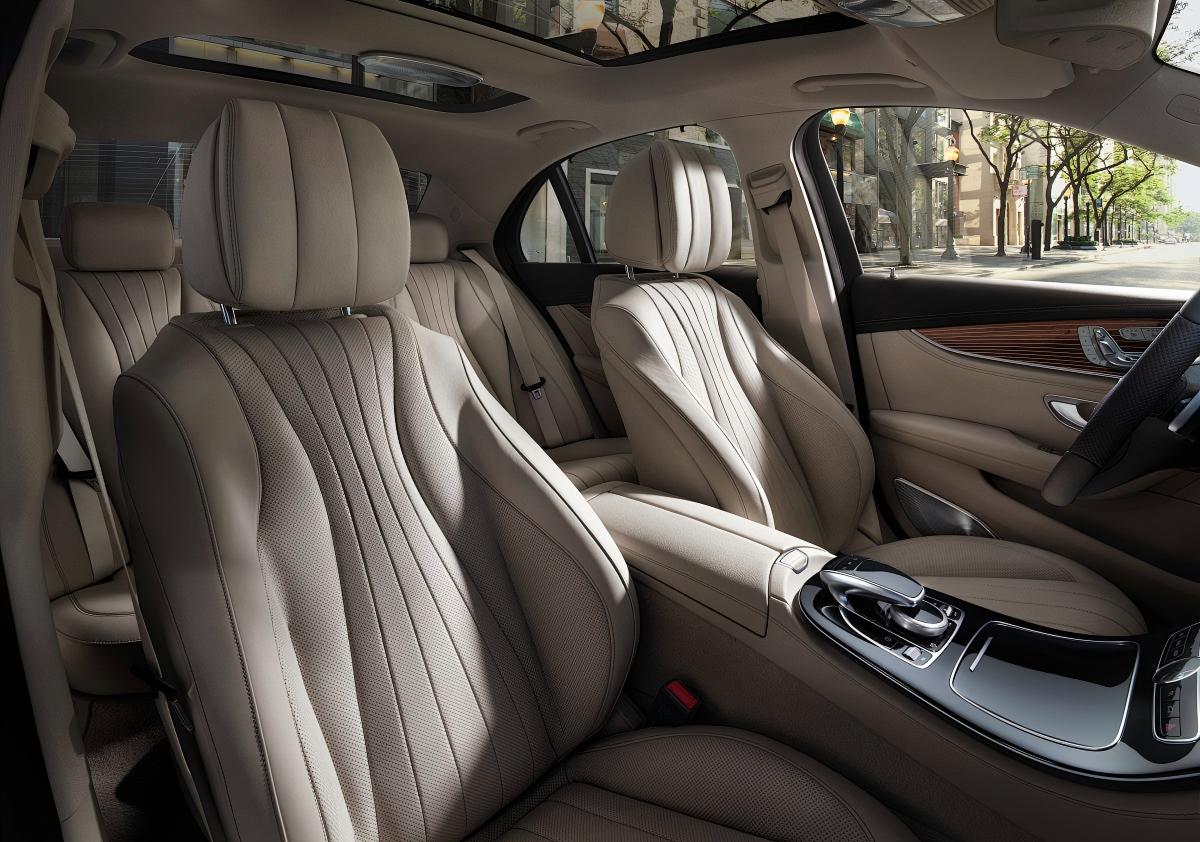

70387719e8d4da4678aba4f2ad24739257ef4a1b26da53-hZtkm6_fw1200(1)

Resolves interior VOC emissions and staining issues with our Automotive Grade Vinyl. Strictly follows IATF 16949 systems and meets VDA 278 ultra-low VOC standards. Features >1000h UV resistance and extreme cold tolerance, making this pvc leather for automotive perfect for passenger car seats and seamless wrapping of complex interior parts using premium pvc leather.

BASIC INFO.
PROJECT	UNIT	STANDARD	RESULT
Thickness	mm		1.0±0.05
Width	cm		≥137
Weight	gram/m²		700±70
Composition	Top Layer：100% PVC, Backing Cloth：100% polyester

PHYSICAL PROPERTY
Abrasion Resistance （Taber）	cycle	ASTM D7255-14(1000g CS-10)	≥20,000
Abrasion Resistance（Mardindale）	cycle	ISO 5470-2	≥100,000
Sticky Slip Test	μm	VDA-230-206	≤3
Tear Strength	N	ISO 4674	MD≥35N CD≥35N
Tensile Strength	N	ISO 1421	MD≥700N CD≥300N
Elogation Rate	%	ISO 1421	MD≥100% CD≥150%
Tensile strength after climatic cycle	%	Test Conditions: +95°C / 168H. Tensile strength test conducted in accordance with ISO 1421. The values must remain within 20% of the nominal mean value reported in the ISO 1421 test report and must not deviate by more than 15% from the nominal limits.	±15%
Tear strength, after climatic cycling	%	Test Conditions: +95°C / 168H. Tensile strength test conducted in accordance with ISO 4674. The values must remain within 20% of the nominal mean value reported in the ISO 4674 test report and must not deviate by more than 15% from the nominal limits.	±15%
Seam Strength	N	QB/T 4043 6.9	≥250N
Coating adhesion N/5 cm	N	Use specimens with a width of 50 mm	Warp & Weft: > 30 N
Coating adhesion, after climatic cycling	%	Test Conditions: +95°C / 168H. Conduct tensile testing based on a coating adhesion width of 50 mm. The values must remain within 20% of the nominal mean value reported must not exceed the nominal limits by more than 15%.	±15%
Color Fastness to Abrasion -Dry/Wet	Grade	ISO 105 X12	≥4.5 50times
Fogging	mg	ISO 6452 Gravimetric Method	< 1.25

PROJECT	UNIT	STANDARD	RESULT
FUNCTIONAL PERFORMANCE
Hydrolysis Resistance	Weeks	ISO 1419 Method C	No Delamination or Cracking After 15 weeks
10% NaOH Aging Test	Hours	10% NaOH	No Delamination or Cracking After 180 hours
Heat resistance	Hours	95℃ 504H	No Delamination or Cracking After 504 hours
Anti-UV	Hours	ISO 4892-2	1000 (Grey Scale ≥4 grade)
Color Fastness To Light	Grade	ISO 105 B02	≥7
Salt fog Resistance	Hours	ASTM B117	No Delamination or Cracking After 1000 hours
Color Fastness to Perspiration	Grade	ISO 105 E04	Acid ≥4.5 ; Alkali ≥4.5
Alcohol Resistance	Grade	ISO 105 X12 (95% Ethanol)	≥4 20 times
Flex Resistance (Room Temperature )	Cycle	ISO5402-1：2022	≥100,000
Flex Resistance (Low Temperature )	Cycle	Condition the specimens at -15°C for 4 hours prior to the test. Conduct the test at -15°C	≥30,000
Antibacterial & Mildew Proof	Grade	ASTM G21	≤1
Flame retardant	FMVSS302,EN71-2,CA117,GB8410,IMO A.652(16)8.2

ENVIRONMENTAL PROTECTION
Reach SVHC 219	PASS	PAHS Free	PASS
EN71-3	PASS	California Pro 65 Compliant	PASS
RoHS	PASS	Formaldehyde Free	PASS
Low VOC	PASS	Odorless	PASS

CARE + MAINTENANCE GUIDE

Do not store in long-term wet places. This will accelerate the aging of the leather.
It can not be placed in direct sunlight for a long time.
If any stain is found, please clean it in time. The longer the time, the more difficult it is to clean the stain.
Do not soak the leather.

Get Technical Data Sheet

Application

Automotive Grade Vinyl shines as the fabric of choice for diverse applications, blending high durability and versatile styling. Not only is it perfect for OEM automotive upholstery and aftermarket retrofitting, but it also thrives in heavy-duty environments like Commercial Transit and construction equipment. Additionally, it's the ideal material for bicycle and motorcycle saddles and RV interiors—the perfect balance of fashion and toughness!

Color Fastness
High Strength Physical Property
Eco-friendly
Weathering Resistance
Flame Resistance
Antibacterial Mouldproof
QUV test

Certificate

Laboratory

Caiwing has a complete team and management system in quality control. All testing operations are carried out in strict accordance with ISO, ASTM, AATCC, SATRA, DIN, GB. In depth cooperation with major testing institutions (SGS, Intertek, etc.) and industry standard setting institutions, real-time learning and updating of self technology, to provide customers with the latest testing standards.

Production Workshop

Caiwing selects the global high-quality supply system to provide diversified products and services for customers in needs.
It has a complete testing center and application analysis team, which can develop and provide solutions for stamoid marine vinyl fabric according to the needs of different scenarios.

Shipping

GYM

CAIWING has a gym , which enables employees to have a rich and colorful spare time life after work. This can also stimulate employees' creativity and happiness and form a strong intemal cohesion.

How To Package

The thick paper tube avoid damage the leather in long-term transportation and reduce the tail wrinkles of the leather.
Generally, the diameter is 4cm, and more diameters can be selected, such as 5cm, 6cm, etc.

Special Packing Can Be Negotiated

Inner Packing

Plastic film is used for inner packing to keep leather clean.

Outer Packaging

In order to better protect the leather, the outer packaging uses woven bags.

Shipping Mark

Each batch of products will paste the shipping mark according to the information provided by customers.

How To Clean

CARE + MAINTENANCE GUIDE

Do not store in long-term wet places. This will accelerate the aging of the leather.
It can not be placed in direct sunlight for a long time.
If any stain is found, please clean it in time. The longer the time, the more difficult it is to clean the stain.
Do not soak the leather.

STAIN AND DISINFECTIENT RECOMMENDATIONS

Recommended Cleaning Solution: Mixture of Tide® or Oxiclean®
and warm water (1 teaspoon of soap for every 16 ounces water)

*For general spills, such as water, coffee, wine, sauce,milk etc.:

Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.

If the spill has evolved into a stain, a mixture of a mild soap, and

water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in

a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.
*For tougher, non-liquid spills, such as mustard, mayonnaise, sunscreen, etc.

Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.

If the spill has evolved into a stain, a mixture of a mild soap, and

water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in

a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.
*For Healthcare stains, such as Blood, Urine, Disinfectant, etc.:

Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.

If the spill has evolved into a stain, a mixture of a mild soap, and

water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in

a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.
*STAIN AND DISINFECTIENT RECOMMENDATIONS CONTINUED

Wipe off the spills with napkin, and then use a clean cloth moistened with water to wipe in lines until it is clean, it is important to wipe the surface with a dry cloth or napkin to remove any remaining moisture.

If the spill has evolved into a stain, a mixture of a mild soap, and

water (See recommendation above) should be used to remove the stain. Dampen a cloth with the mixture and gently work the stain in

a circular motion. Avoid rubbing the infected area aggressively, and be sure not to over saturate the fabric. After the stain is removed, dampen a cloth with water only and wipe away any excess soap left behind, and wipe the surface with a dry cloth to remove any remaining moisture.
